Polished Surface Milling Tungsten Carbide End Mill With Customized Flutes

ZHUZHOU SEEGO CARBIDE TOOLS CO., LTD.
Contact Now

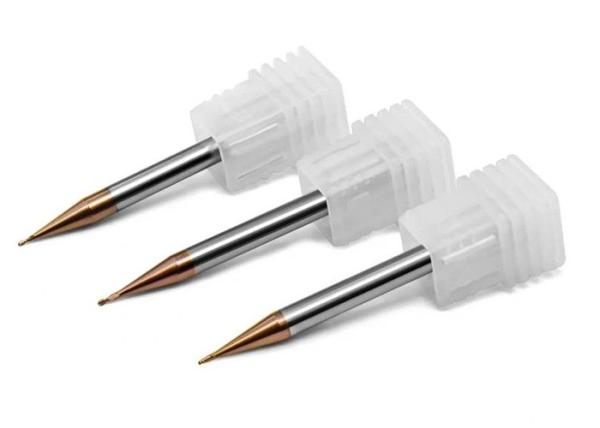

Polished Surface Milling Tungsten Carbide End Mill With Customized Flutes

Brand Name : Seego Carbide

Model Number : Tungsten Carbide End Mill

Certification : CE SGS ISO

Place of Origin : Hunan of China

MOQ : 5 pcs

Price : Negotiable Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs per month

Delivery Time : 7~20 days after order confirmed

Packaging Details : Every 10 pcs a group loaded in export cartons

Product Name : Solid Tungsten Carbide End Mills for Polished Surface Milling

Processed Material : Cast Iron, Steel, Aluminum, Rubber Milling

Length : 50~150mm and Customized length

CNC Machine : Anca grinding machine

Size : Φ4 Φ6 Φ8 Φ10 Φ12...

Flute NO. : 2, 3, 4, 6 Flutes and Customized Flutes

Contact Now

Solid Tungsten Carbide End Mills for Polished Surface Milling

Discription:


A finishing end mill has one square end and the outside diameter is smooth for creating polished surface finishes.

They come in a variety of helix angles and numbers of flutes. They are mainly used for side milling operations.

We are professional munufaturer and supplier for a ranges of high performance solid carbide end mills, drills, reamers in ultra micro grain tungsten carbide materials.

Applications: for Aluminum,Copper,Iron,Ordinary Steel,Heat Resistant Steel,Stainless Steel,Ti Alloy.

Solid Carbide End Mills are made from ultra micro-grain carbide will produce with quality surfaces in cast iron, sintered materials, aluminum and some steels. The unique characteristics of the newer ultra fine grain materials will support cutting action in carbide end mills at high rates with extremely good wear resistance. Coatings to insure smooth finish enhance the quality of the surfaces milled and improve the heat resistance insuring long tool life.


Specifications of corner radius head End Mills:

Description D Lc L d R z
Standard Length 1.0~6.0 3.0~16.0 50 4~6 0.0~2.0 2
8.0 20 60 8 0.3~2.0 2
10.0~12.0 25~30 75 10~12 0.3~3.0 2
16.0 36 100 16 1.0~3.0 2
With Long Shank Length 6.0 15 785 6 0.5~1.5 2
8.0~12.0 20~30 100 8~12 0.5~2.0 2
16.0 36 150 16 0.5~2.0 2
Standard Length 2.0~6.0 6.0~16.0 50 4~6 0.1~0.5 3
8.0 20 60 8 0.5~1.0 3
10.0~12.0 25.0~30.0 75 10~12 0.5~2.0 3
16.0~20.0 16.0~45 100 16~20 0.5~4.0 3
Standard Length 1.0~6.0 3.0~16.0 50 4~6 0.0~2.0 4
8.0 20 60 8 0.3~2.0 4
10.0~12.0 25~30 75 10~12 0.3~3.0 4
16.0 36 100 16 1.0~3.0 4
With Long Shank Length 6.0 15 785 6 0.5~1.5 4
8.0~12.0 20~30 100 8~12 0.5~2.0 4
16.0 36 150 16 0.5~2.0 4


Coating:

Coating Sheet
Coating Type TiAIN ALTiN TiSiN Nano
Hardness(HV) 2800 3200 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 800 900 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Violet Black Copper Blue


TiAIN

A special multilayer coating for edge retention and corrosion resistance when used on a wide range of materials including iron based, hardened steels, and stainless steels. Typically TiAIN is used in applications with lower cutting speeds than TiSiN and ALTiN but often improves the tool's lifetime by a factor of three or more.

ALTiN

A general purpose coating that offers improved wear resistance to abrasive, adhesive, or difficult to machine materials such as cast iron, aluminum alloys, steels, copper and more. This is a common used substitute when the advantages of TiAIN cannot be used, as in applications that cannot generate the speeds and feeds required for higher cutting temperatures. ALTiN is harder and more impact resistant than TiAIN and can improve tool life.

TiSiN

This is a high performance coating for milling, tapping and drilling in stainless steels, carbon steels, alloy steels, and cast iron. This coating is extremely heat resistant and can be used with or without coolant. It is exceptional in difficult to machine materials where adhesive wear is particularly high and can be run at much higher speeds and feeds than all other coatings.

Polished Surface Milling Tungsten Carbide End Mill With Customized Flutes


Product Tags:

2/3/4/6 flutes carbide square end mill



Carbide Endmills with AlTiN /TiAIN/TiSiN/Nano Coating



Carbide Endmills for CNC center
